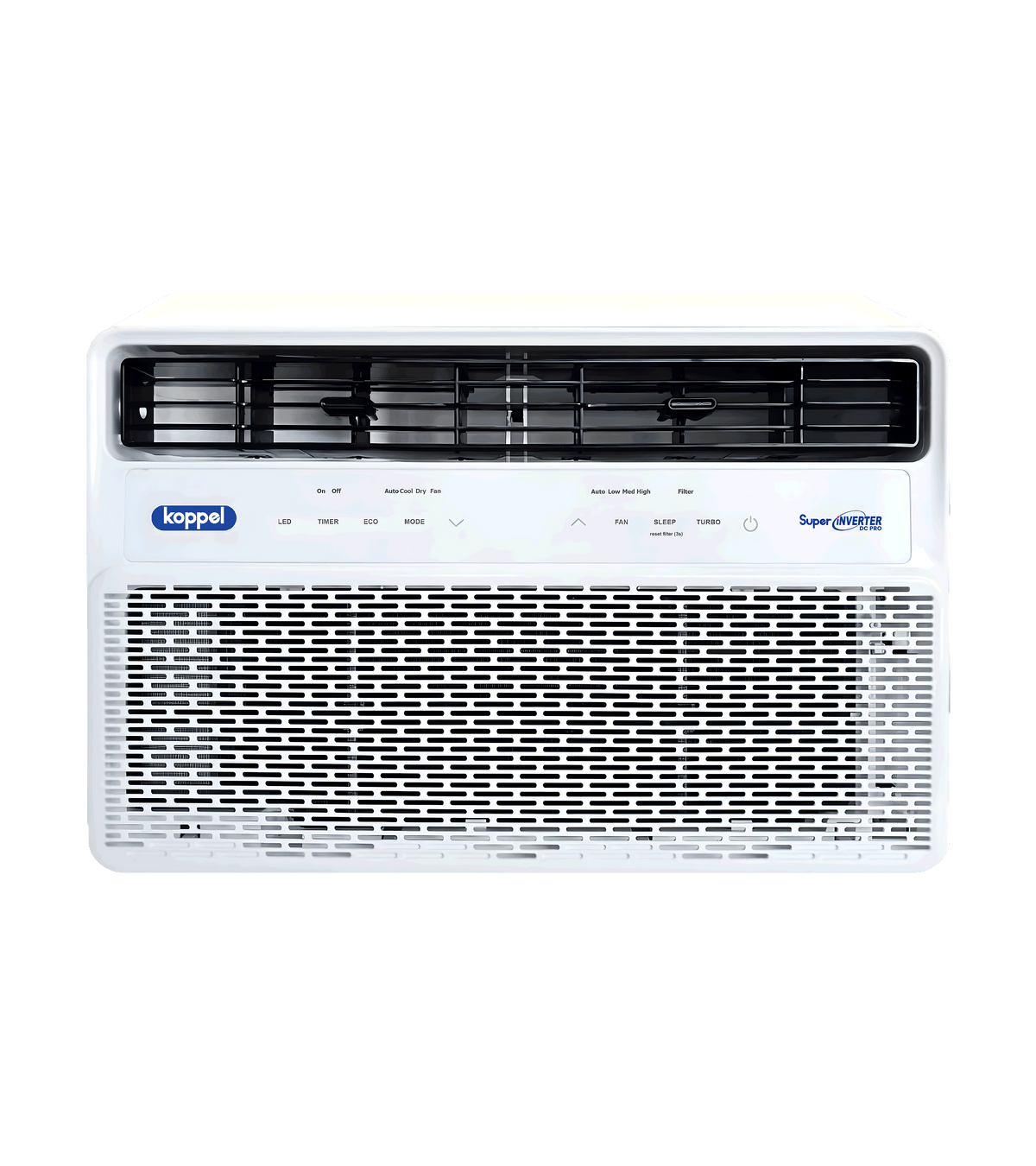

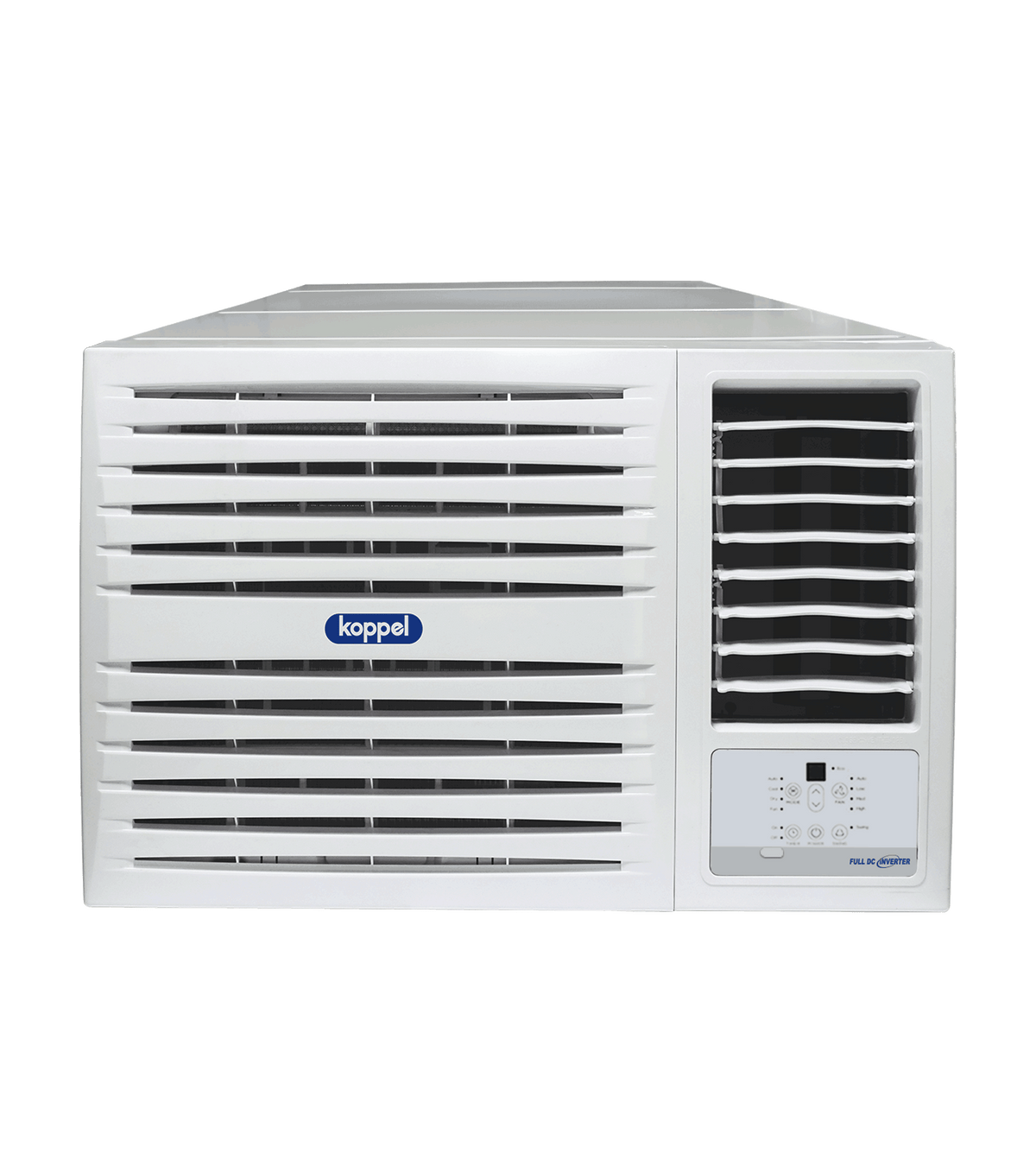

Window Type Inverter

 SRP: 28,995 SRP: 32,995
Indoor KV09WR-ARF31 KV12WR-ARF31
1.0 Hp 1.5 Hp
Cooling BTU/h 9,450 12,500
kJ/hr 9,970 13,188
Power Consumption W 740 1,008
Rated Current A 4.17 4.5
EER kj/h-W 13.5 13.1
Indoor Noise Level (Low) dB(A) 54.5 57
Indoor Air Flow (High) m3/h 473 438
Power Supply V/Hz/Ph 220-240/60/1 220-240/60/1
Refrigerant R32 R32
UNIT DIMENSION  WxDxH mm  560 x 670 x 400  560 x 670 x 400
CARTON DIMENSION  WxDxH mm  620 x 770 x 440  620 x 770 x 440
Weight Net/Gross Kg  42/46.1  44.4/48
NOTES:
(1) Testing Conditions: Indoor air inlet temperature: 27o DB / 19o WB; Outdoor air inlet temperature: 35o DB / 27o WB.
(2) Specifications are subject to change without prior notice for continuous product improvement
(4) Koppel is a registered trademark of Koppel, Inc.



SRP: 98,195  SRP: 166,895
Indoor  KV 36FM-ARF21C KV 60FM-ARF21C
Outdoor KV 36ODU-ARF21C KV 60ODU-CRF21C
3.0TR 5.0TR
Cooling BTU/h 38,000 60,000
kJ/hr 40,090 63,300
Power Consumption W 3,100 5,370
Rated Current A 16.2 15.5
EER BTU/h-W 12.3 11
kJ/hr-W 12.9 11.8
Indoor Noise Level (Low) dB(A) 48 49.2
Indoor Air Flow (High) m3/h 1,734 2,200
Maximum Pipe Length m 30 50
Maximum Difference in Level m 20 30
Tubing Connection Diameter (Liq/Gas) mm 9.5 / 15.9 9.52 / 19
Power Supply V/Hz/Ph 220-240/60/1 220-240/60/3
Refrigerant R410A R410A
Compressor Rotary Twin-Rotary
UNIT DIMENSION mm
Indoor Unit WxDxH 550 x 350 x 1,800 610 x 390 x 1,925
Outdoor Unit WxDxH 1,030 x 420 x 810 952 x 415 x 1,333
CARTON DIMENSION mm
Indoor Unit WxDxH 1,910 x 685 x 540 2,050 x 745 x 545
Outdoor Unit WxDxH 1,090 x 500 x 875 1,095 x 495 x 1,480
Weight Kg
Indoor Unit Net/Shipping 50/67 59/77
Outdoor Unit Net/Shipping 69/75 104/116
NOTES:
(1) Testing Conditions: Indoor air inlet temperature: 27o DB / 19o WB; Outdoor air inlet temperature: 35o DB / 27o WB.
(2) Prices and specifications are subject to change without prior notice for continuous product improvement.
(3) Subsequent models will have the suffix “V”.
(4) Koppel is a registered trademark of Koppel, Inc.
